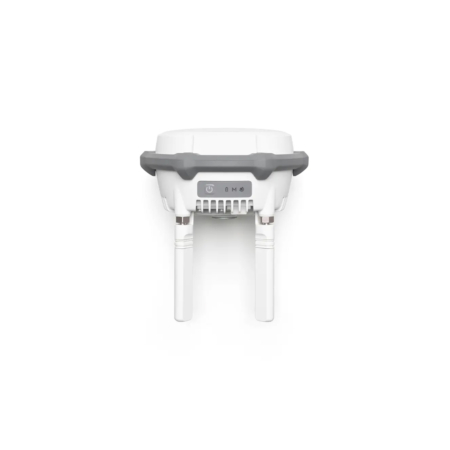

DJI D-RTK 3 Multifunctional Station DRTK3 Drone Controller
$21.54
$28.65
DescriptionDJI D-RTK 3 Multifunctional Station DRTK3 Drone ControllerMulti-functional station yang terintegrasi dengan drone DJI untuk memberikan positioning accuracy yang tinggi sebagai base station, dan kini memiliki rover mode untuk pengambilan data koordinat untuk GCP/CP, serta menjadi relay station untuk meningkatkan jarak transmisiBase Station Mode: Mendukung 5 GNSS Systems & menyediakan RTK broadcasting untuk beberapa drone sekaligusRover Mode: Pengambilan koordinat GCP/CP, terintegrasi dengan high precision IMU & tilt measurementRelay Station Mode: Meningkatkan jarak transmisi di area sulit sinyal seperti di perkotaan atau perbukitanIn The Box :D-RTK 3 Multifunctional Station × 1Spare OcuSync Directional Antennas × 4USB-A to USB-C Cable× 1Specifications :GNSS FrequencyGPS: L1C/A, L2C, L5BDS: B1I, B2I, B3I, B1C, B2a, B2bGalileo: E1, E5a, E5b, E6GLONASS: L1, L2QZSS: L1C/A, L2C, L5L-BandRover Station Mode AccuracyStatic MeasurementHorizontal: 0.8 cm 1 ppm (RMS)Vertical: 1.5 cm 1 ppm (RMS)Tilt MeasurementAngle Range: 0°to 60°Horizontal: 8 mm 0.7 mm/° tilt (accuracy <2 cm within 30°)Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)FCC:15 km between the aircraft and the relay station1 km between the relay station and the remote controllerSRRC:12 km between the aircraft and the relay station1 km between the relay station and the remote controllerCE:8 km between the aircraft and the relay station300 m between the relay station and the remote controllerProtection Rating: IP67 (station only)Diameter: 163 × 89 mm (without OcuSync Directional Antennas)Weight: 1.26 kg
